item no :
ZOPIN-NF21moq :
1lead date :
In Stockpayment:
Credit Card L/C D/A D/P T/T Western Union

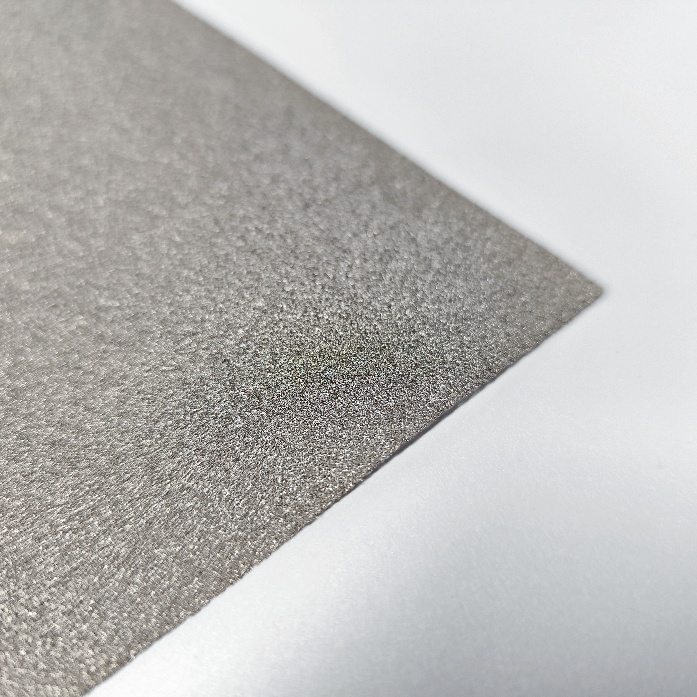

0.08mm Ultra-thin Nickel Foam Graphene Supercapacitor Suppliers
Introduction
1. Due to the uniform 3D structure and customized porosity of nickel metal foam, Nickel Foam Graphene can be used as filter material. Its magnetism makes it suitable as a magnetic flux conductor to handle magnetic particles in fluids. Due to its unique molding ability, wide porosity range, and environmental stability, other applications may include hydrogen storage media, heat exchanger media, and even in art.
2. Foam nickel can be used in industry as filter material to process magnetic particle magnets in fluids. Other applications include applications in hydrogen storage media and heat exchange media.
3. At present, the foam nickel industry is running well, and the enterprise is gradually developing towards industrialization and scale. Foam nickel is an excellent sound absorption material, and its sound absorption coefficient is high at high frequencies; The design of sound-absorbing structures can improve the low-frequency sound absorption performance.
Specifications
Type |
Open cell |
Purity |
> 99% |
Form |
Sheet or Roll, depending on size & thickness |

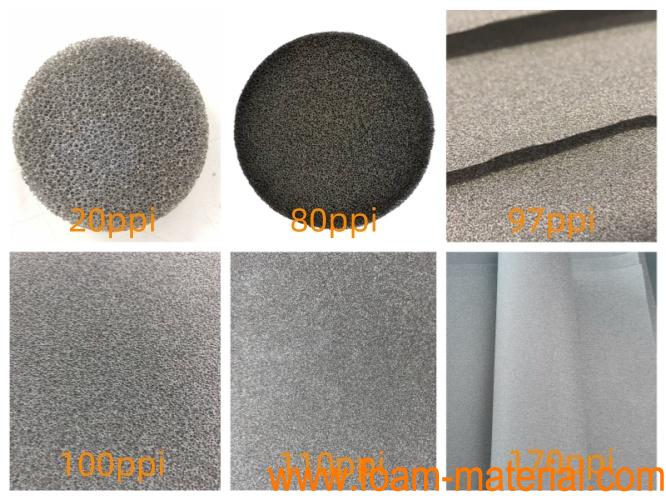

Cell Size (PPI) |
10-150PPI, as per request |
Thickness |
0.08mm~30mm |
Size & Shape |
Standard: 500*500mm/ 200*300mm/ 100*100mm; can be made in different shape as per request |
Porosity |
95%-98% |
Open Cell Rate |
≥98 % |
Volume Density |
>0.1g/cm3, as per request |
Surface Density |
200-2500 g/m ^2, as per request |
Thermal Conductivity (Theoretical) |
>3W/M.K |
Mechanical Strength (Theoretical) |
≥2~7MPa |
Tensile Strength (Theoretical) |
8~50MPa |
Temperature Resistance (Theoretical) |
≥500℃ |
To customize various metal foams, please click the picture below for details:
Dimension (Thickness* Length*Width)
0.08mm*300mm*200mm |
0.2mm*200mm*300mm |
0.3mm*200mm*300mm |
0.5mm*200mm*300mm |
0.7mm*200mm*300mm |
0.9mm*200mm*300mm |
1.0mm*200mm*300mm |
1.3mm*200mm*300mm |
1.5mm*200mm*300mm |
1.7mm*200mm*300mm |
2.0mm*200mm*300mm |
5mm*200mm*300mm |
10mm*200mm*300mm |
30mm*200mm*300mm |
The size can be customized |
