0.5mm to 3mm Thickness Ultramet Carbon Foam Battery For Sale

Wechat:18832681205

Whatsapp :+86 18832681205

Email: Daisy@foam-material.com

  • item no :

    ZOPIN-CAF45
  • moq :

    1
  • lead date :

    In Stock
  • payment:

    Credit Card L/C D/A D/P T/T Western Union
product details

0.5mm to 3mm Thickness Ultramet Carbon Foam Battery For Sale



Characteristic

In addition to the conventional properties of carbon materials, carbon foam also has the characteristics of low density, high strength, thermal shock resistance, easy processing, and good physical and chemical properties such as electrical conductivity, thermal conductivity, and wave absorption.
1. Low density, high strength
2. It can be made into high or low thermal conductivity materials
3. It has good thermal shock resistance and can resist the shock of temperature sudden change of

    1250 ℃
4. High temperature and corrosion resistance

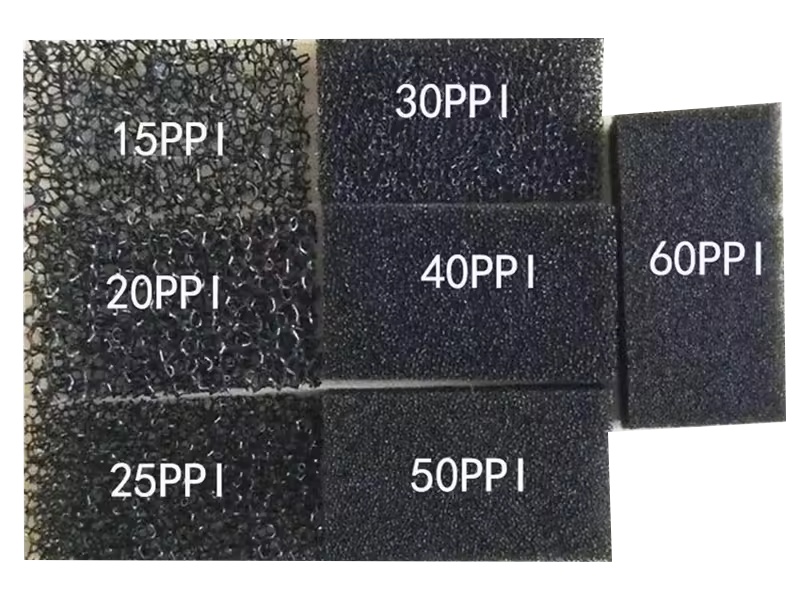

5. Pore size can be foamed according to customer's requirements


Technical indicators

Density

0.2 ~ 1.0g/cm3

Porosity

30 ~ 80%

Aperture

0.01-6mm

Compressive strength

8-12mpa

Compression modulus

300-620mpa

Tensile strength

2-5mpa

Tensile modulus

300 ~ 500MPa

Thermal expansion coefficient

5.0ppm /

Thermal conductivity

25 ~ 80W / m.k

Resistivity

1.0 × 10-2 ~ 10-5 Ω· M

Maximum operating temperature

600  (in air), 3000  (in inert gas)

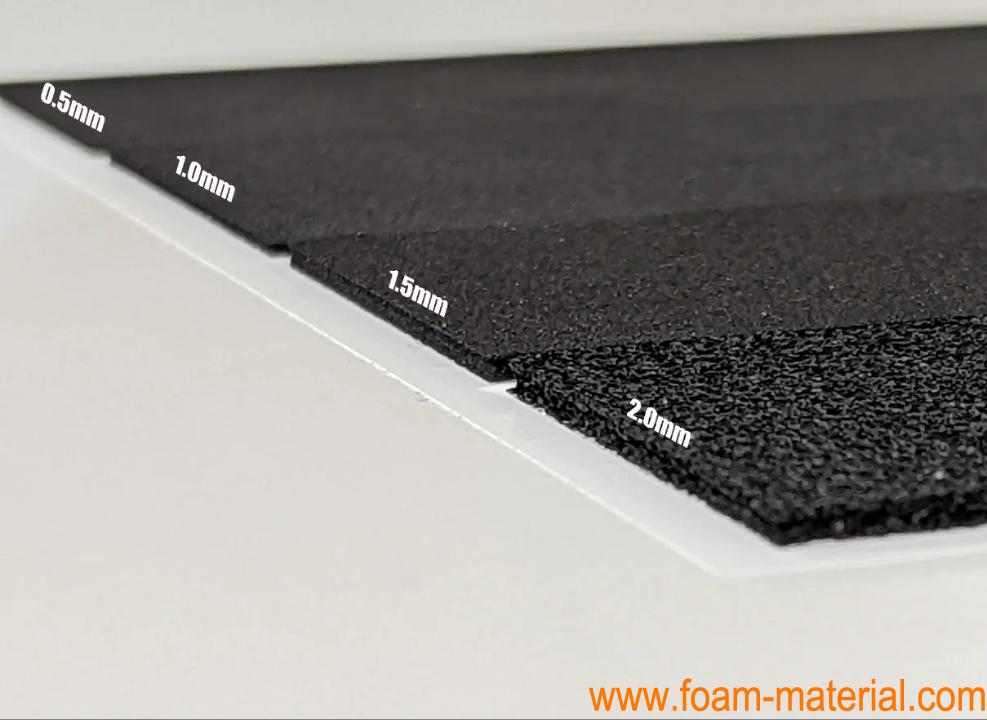

Dimensions

0.5mm*100mm*100mm

0.6mm*100mm*100mm

0.7mm*100mm*100mm

0.8mm*100mm*100mm

0.9mm*100mm*100mm

1.0mm*100mm*100mm

1.2mm*100mm*100mm

1.5mm*100mm*100mm

2.0mm*100mm*100mm

2.5mm*100mm*100mm

3.0mm*100mm*100mm

The size can be customized


To customize various metal foams, please click the picture below for details:



carbon foam sheet


carbon foam manufacturers


ultramet carbon foam


carbon foam battery for sale


foam carbon




Sliver foam
