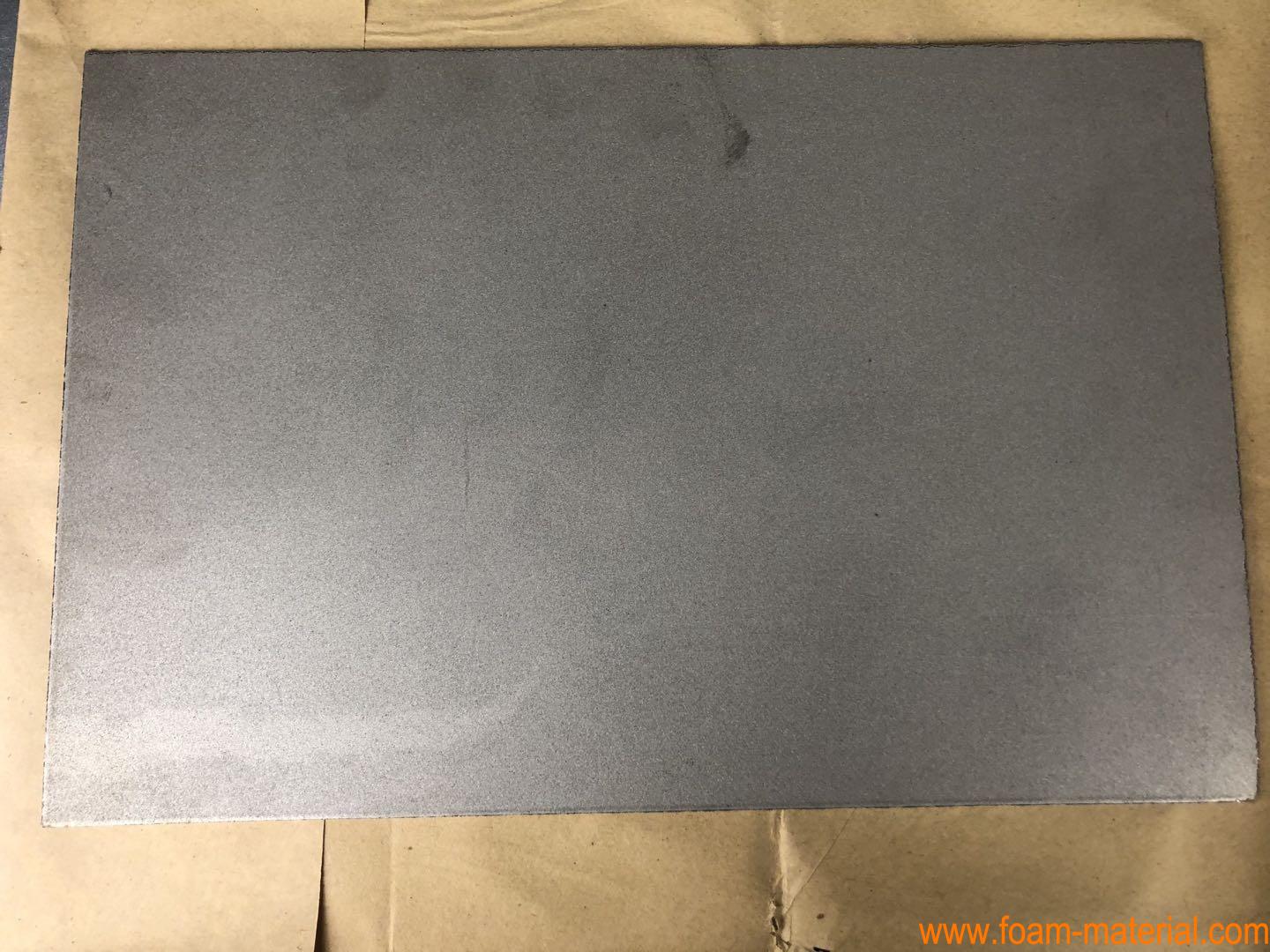

0.6mm-3mm Thickness Size Customizable Titanium Metal Foam Ti Foam

Introduction

Filtration accuracy	0.45um-100um
Porosity	28-50%
Transmittance rate	0.02-20M3cm/m2h.mmH2O
Compressive strength	0.5-1.5Mpa
Temperature resistance	280 ° C (wet state)
Maximum working pressure range	0.6Mpa
Precision	0.22 µm 0.45 µm 1 µm 3 µm 5 µm 10 µm 20 µm 30µm  50 µm 80 µm 100 µm

v

Reference dimensions

0.7mm*200mm*300mm	0.8mm*200mm*300mm	0.9mm*200mm*300mm
1.0mm*200mm*300mm	1.1mm*200mm*300mm	1.2mm*200mm*300mm
1.3mm*200mm*300mm	1.4mm*200mm*300mm	1.5mm*200mm*300mm
1.6mm*200mm*300mm	1.7mm*20mm*300mm	1.8mm*200mm*300mm
1.9mm*200mm*300mm	2 to 3mm*200mm*300mm	The size can be customized

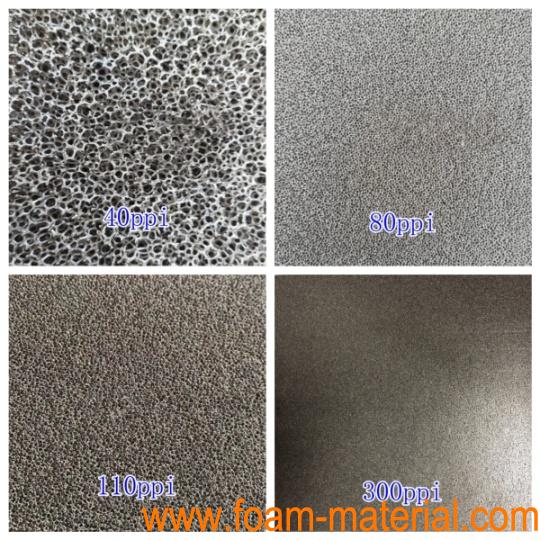

To customize various metal foams, please click the picture below for details：
