item no :
ZOPIN-CCC-Foilmoq :
1lead date :
In Stockpayment:

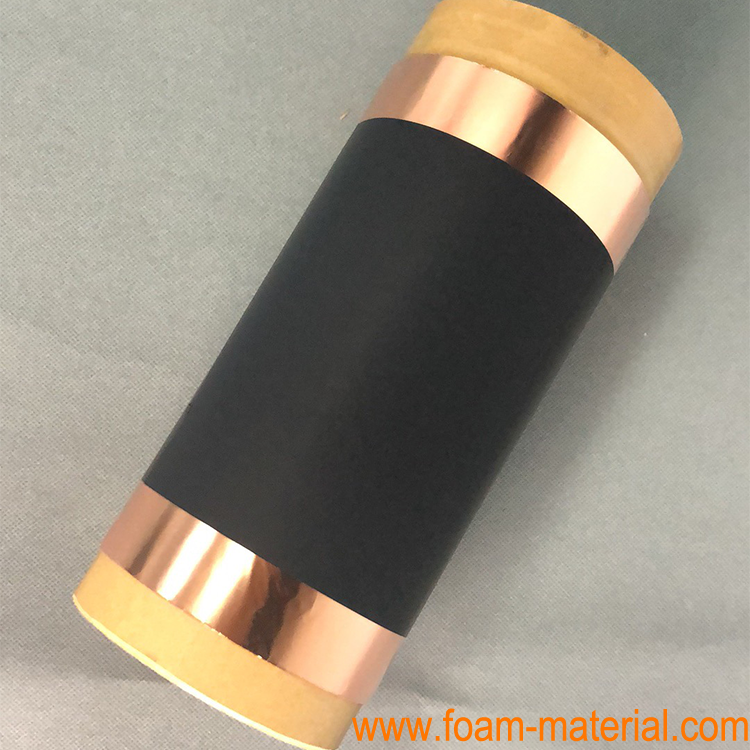

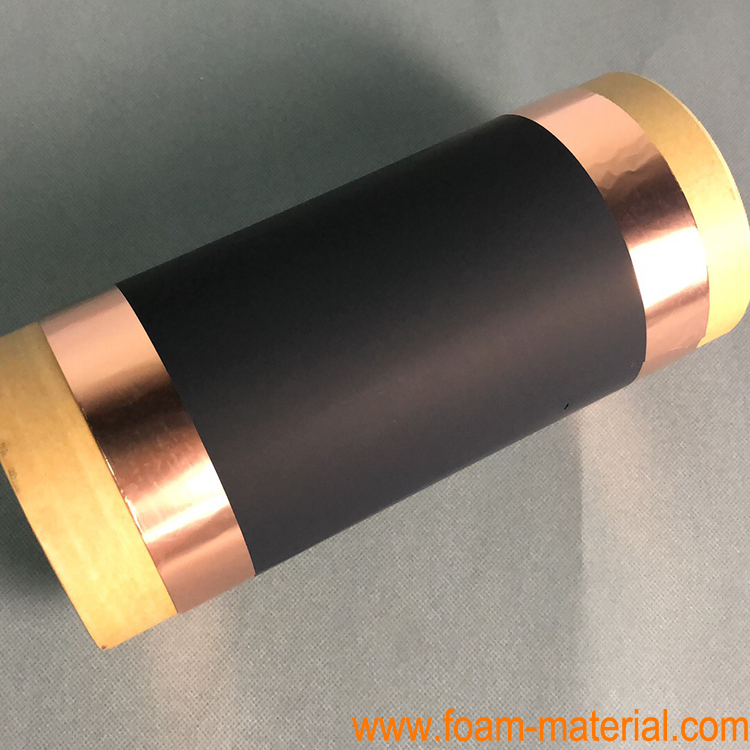

Credit Card L/C D/A D/P T/T Western UnionCarbon Coated Copper Foil Cu Metal Foil for lithium ion Battery Substrate
Introduction
Conductive carbon-coated copper foil can replace conventional Al foil as a better anode substrate with improved properties.
· Better electrical conductivity and less internal resistivity
· Better mechanical strength and toughness to avoid short circuit caused by dendrite growth
· Better coating strength with electrode material
· Therefore, it will provide larger discharging capability and longer service life for Li-Ion batteries
Specifications
Conductive carbon coating
· Double side coating with 1-micron thickness each side
· Density: 0.54 g/m2
· Surface resistivity: < 30 ohms per 25um^2
Substrate of Copper
· Purity > 99.9%
· Thickness: 9 micron
Total Width
200 mm
Thickness
9um
