item no :
ZOPIN-TEE01moq :
1lead date :
In Stockpayment:
Credit Card L/C D/A D/P T/T Western Union

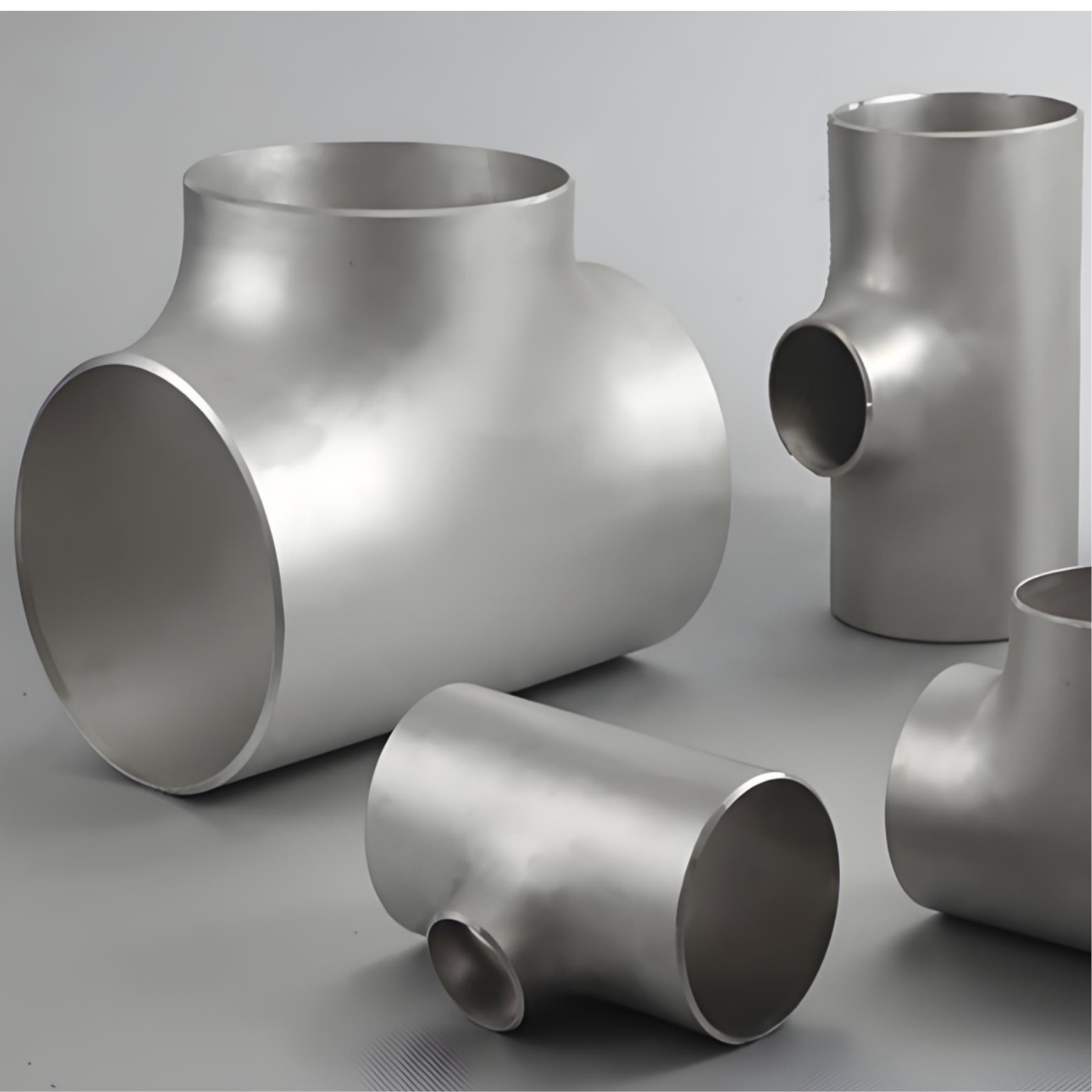

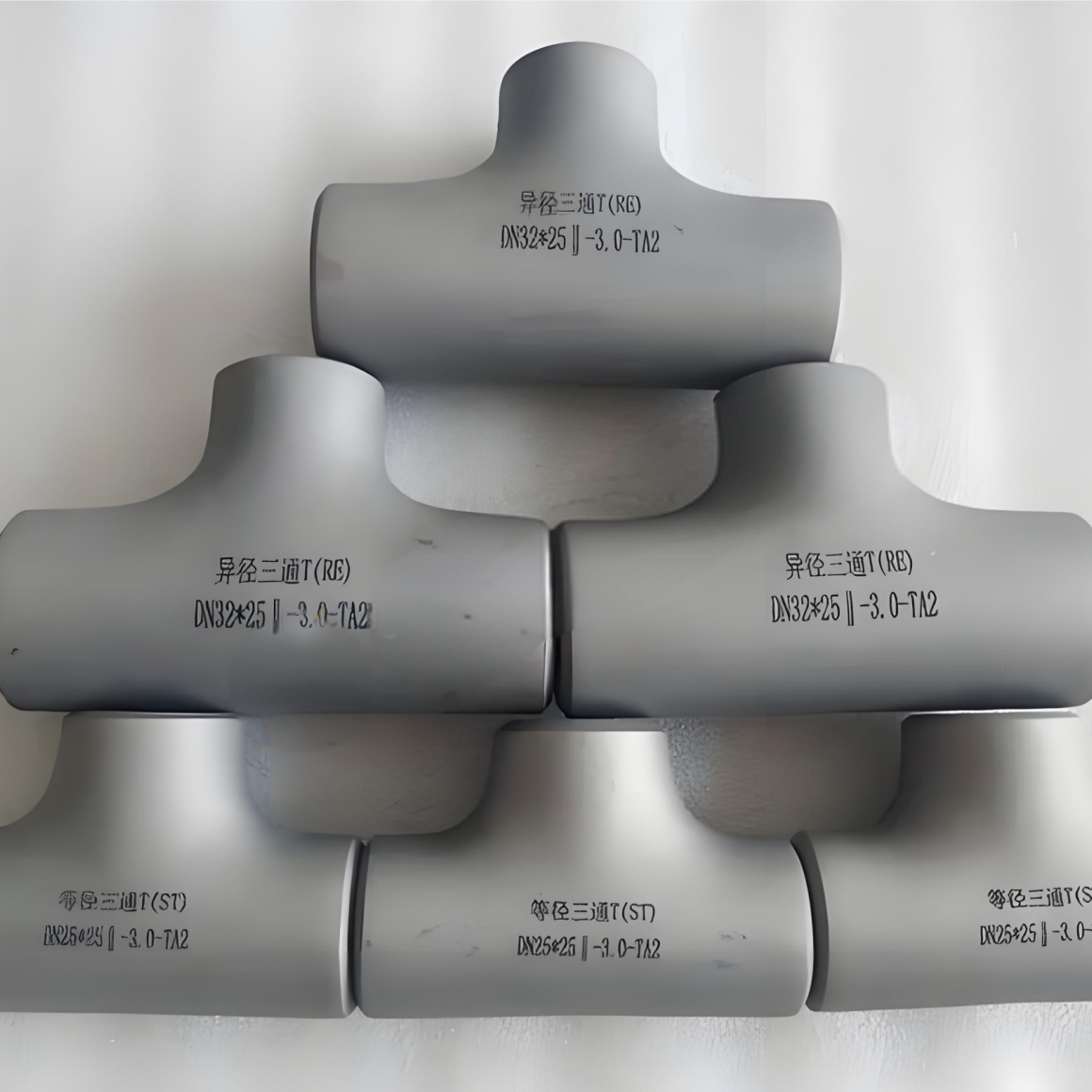

Customizable Pure Titanium Tee Ti Alloy Tee Industry

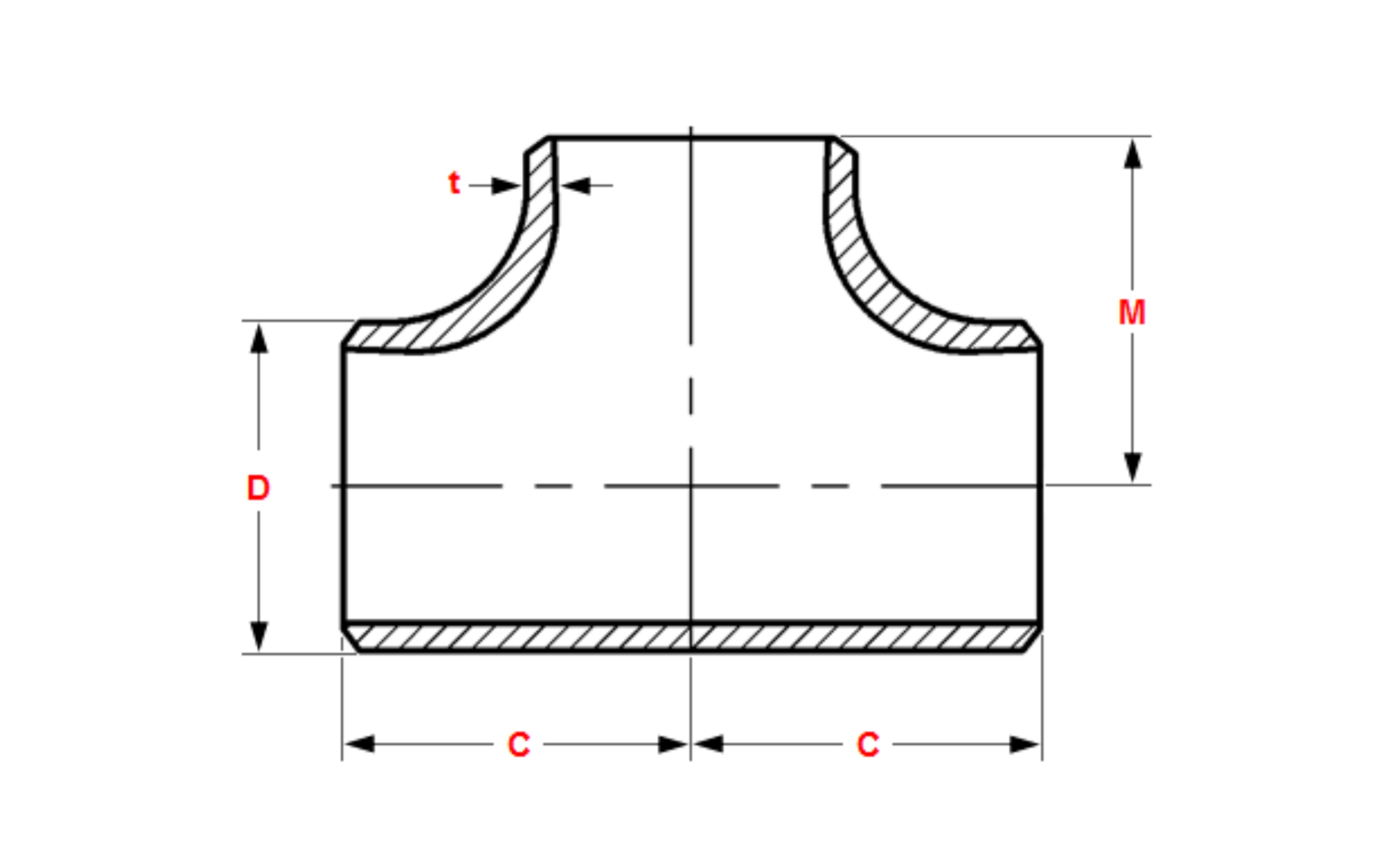

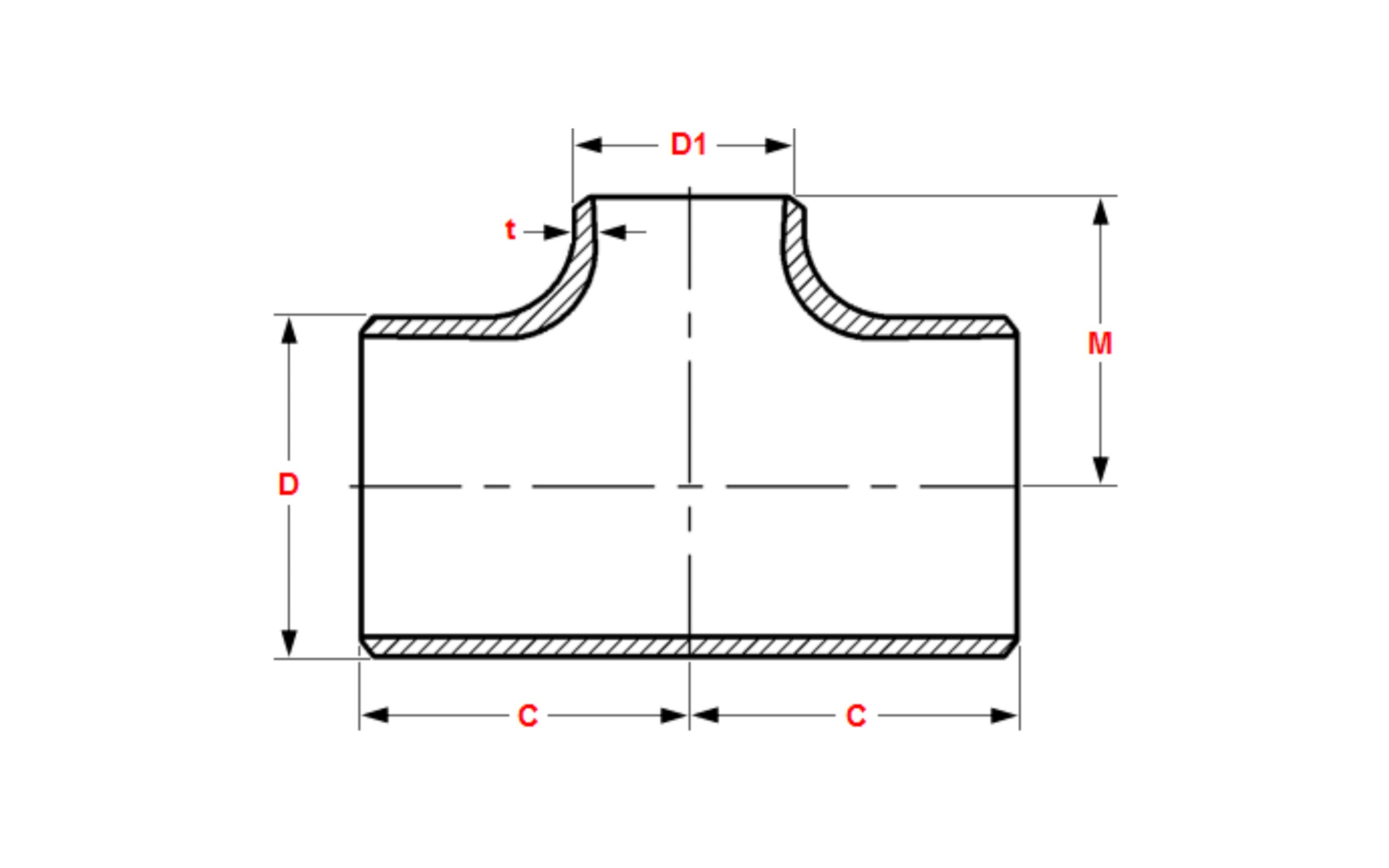

Reducing Tee Parameters
|
NPS |
O.D. D |
O.D. D1 |
Center to End C |
Center to End M |
NPS |
O.D. D |
O.D. D1 |
Center to End C |
Center to End M |
|
3/4 – 1/2 |
26.7 |
21.3 |
29 |
29 |
20 – 12 |
508 |
323.8 |
381 |
346 |
|
1 – 1/2 |
33.4 |
21.3 |
38 |
38 |
20 – 14 |
508 |
355.6 |
381 |
356 |
|
1 – 3/4 |
33.4 |
26.7 |
38 |
38 |
20 – 16 |
508 |
406.4 |
381 |
356 |
|
1.1/4 – 1/2 |
42.2 |
21.3 |
48 |
48 |
20 – 18 |
508 |
457 |
381 |
368 |
|
10 – 4 |
273 |
114.3 |
216 |
184 |
48 – 40 |
1219 |
1016 |
889 |
813 |
|
10 – 5 |
273 |
141.3 |
216 |
191 |
48 – 42 |
1219 |
1067 |
889 |
813 |
|
10 – 6 |
273 |
168.3 |
216 |
194 |
48 – 44 |
1219 |
1118 |
889 |
838 |
|
10 – 8 |
273 |
219.1 |
216 |
203 |
48 – 46 |
1219 |
1168 |
889 |
838 |
|
The size can be customized |
|||||||||

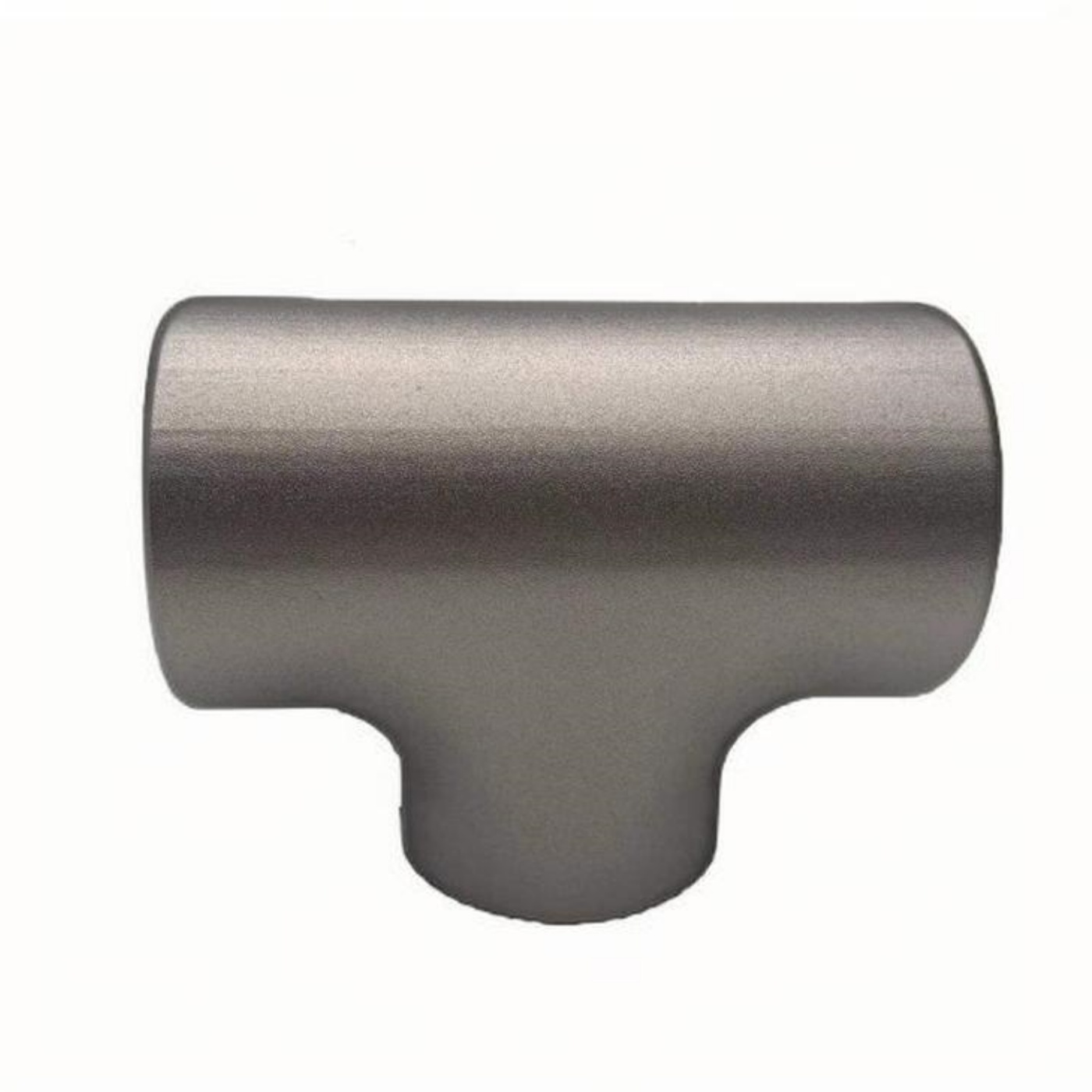

Straight Tee Parameters
|
NPS |
O.D. |
Center to End |
Center to End M |
NPS |
O.D. |
Center to End |
Center to End M |
|
1/2 |
21.3 |
25 |
25 |
26 |
660 |
495 |
495 |
|
3/4 |
26.7 |
29 |
29 |
28 |
711 |
521 |
521 |
|
1 |
33.4 |
38 |
38 |
30 |
762 |
559 |
559 |
|
1.1/4 |
42.2 |
48 |
48 |
32 |
813 |
597 |
597 |
|
4 |
114.3 |
105 |
105 |
42 |
1067 |
762 |
711 |
|
5 |
141.3 |
124 |
124 |
44 |
1118 |
813 |
762 |
|
6 |
168.3 |
143 |
143 |
46 |
1168 |
851 |
800 |
|
8 |
219.1 |
178 |
178 |
48 |
1219 |
889 |
838 |

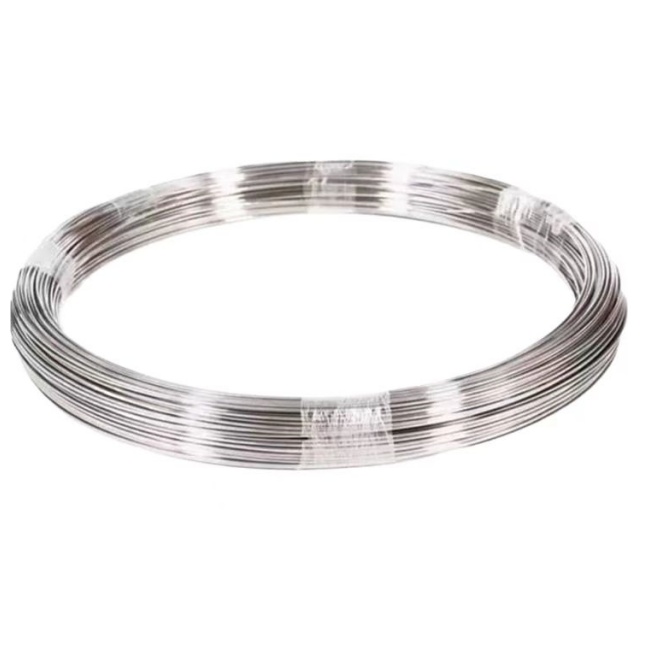

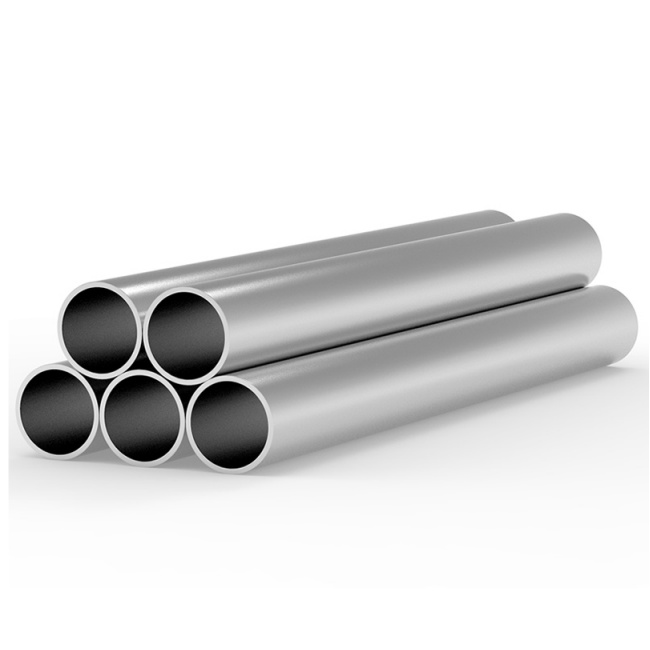

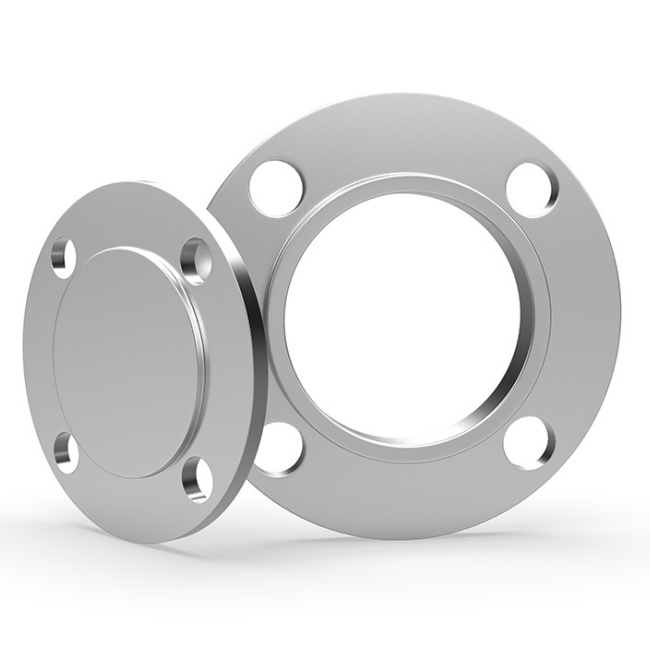

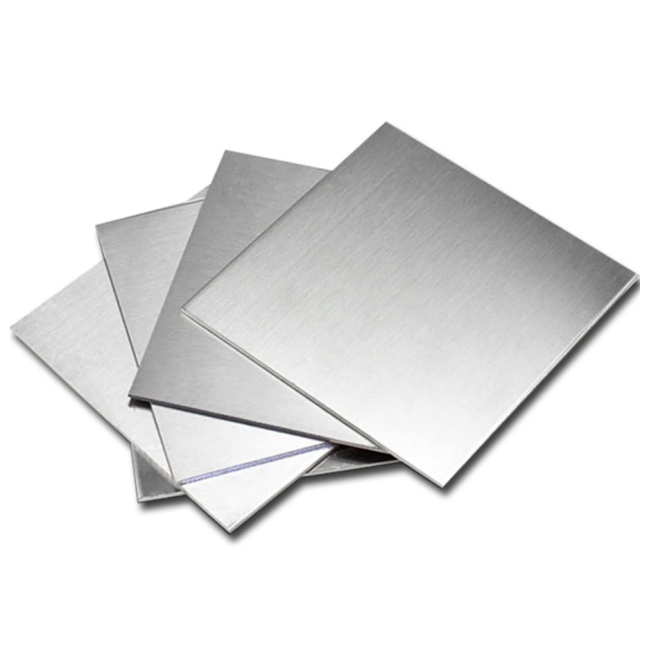

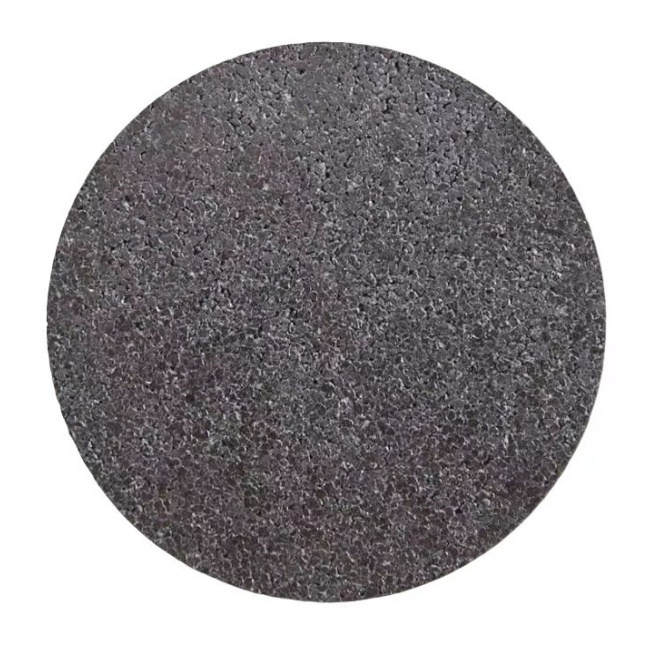

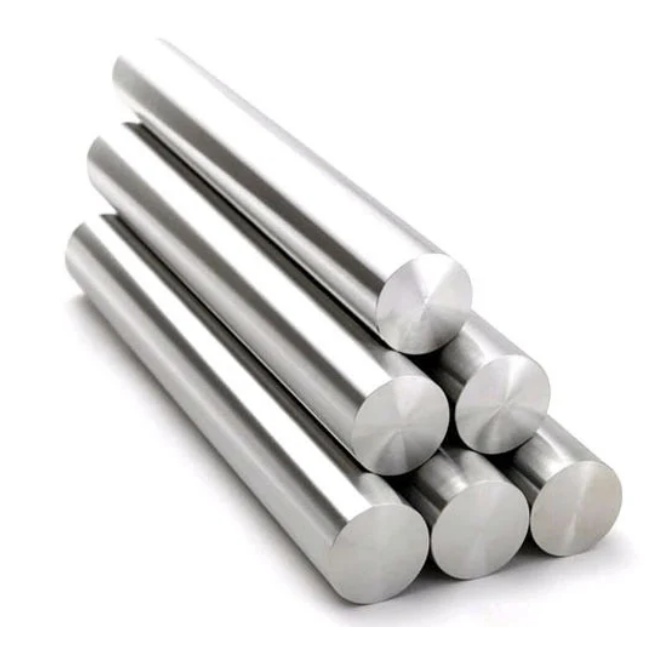

To customize various Titanium Production, please click the picture below for details：
Advantages
1. Titanium tees, also known as titanium pipe fittings, are essential components in various industrial and plumbing systems. Made from high-quality titanium alloy, these tees offer exceptional corrosion resistance, strength, and durability. Their unique properties make them ideal for applications in harsh environments where traditional materials may fail.
2. Titanium tees are renowned for their lightweight yet robust construction. The material's high corrosion resistance ensures that it can withstand exposure to a wide range of chemicals and corrosive substances, making it perfect for use in chemical processing, marine, and oil and gas industries. Additionally, titanium's excellent mechanical properties, including high tensile strength and fatigue resistance, contribute to the tee's long-term reliability and performance.

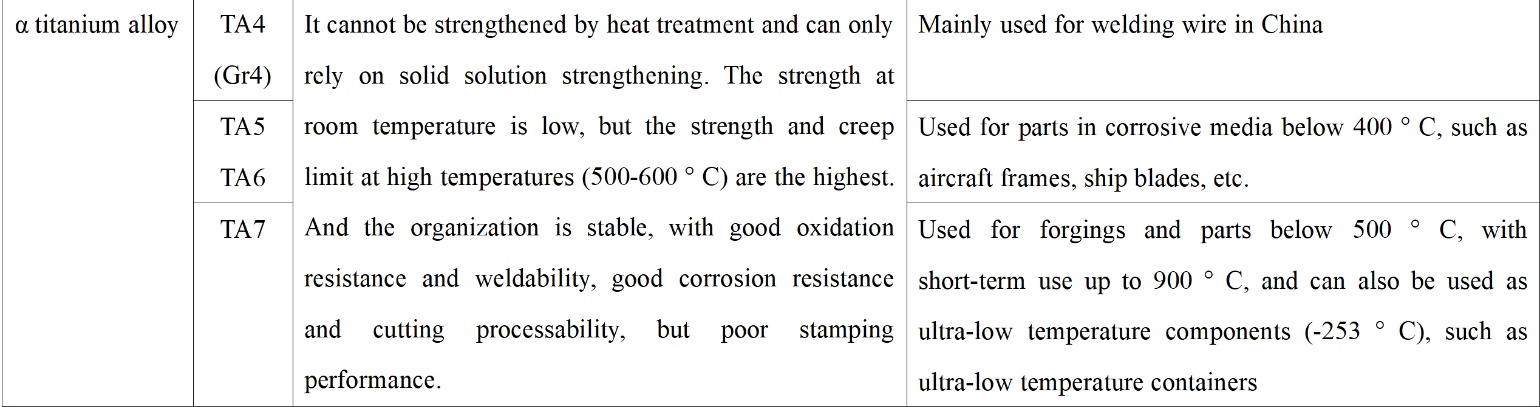

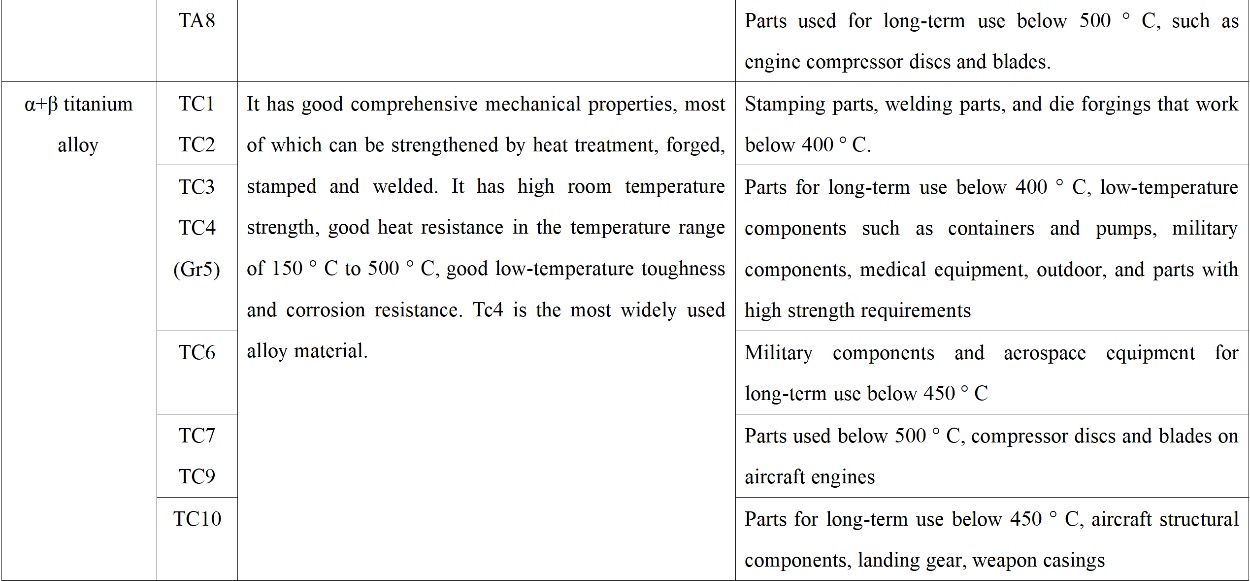

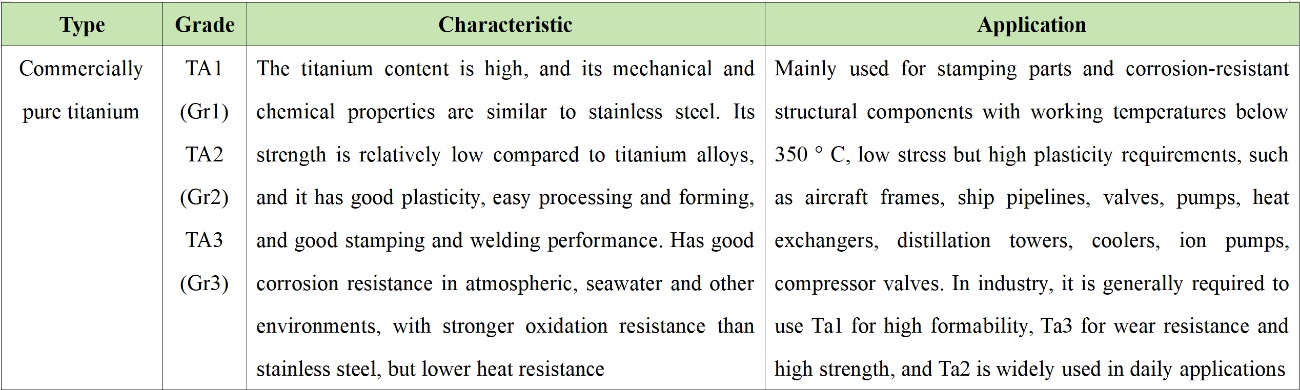

Material Types
Gr2 TA1 TA2 Pure Titanium Reducing Tee Supplier
