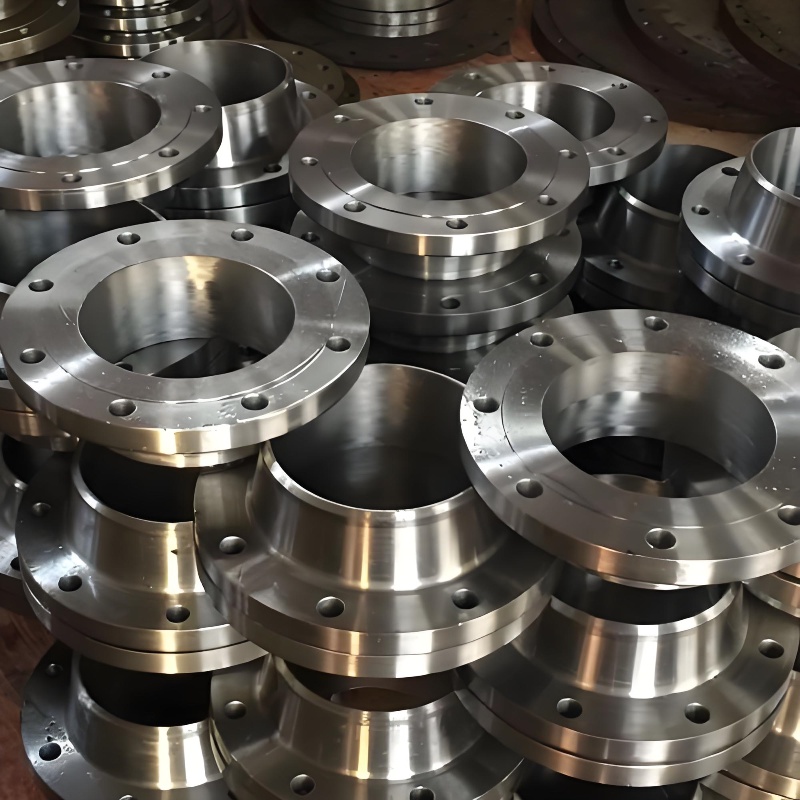

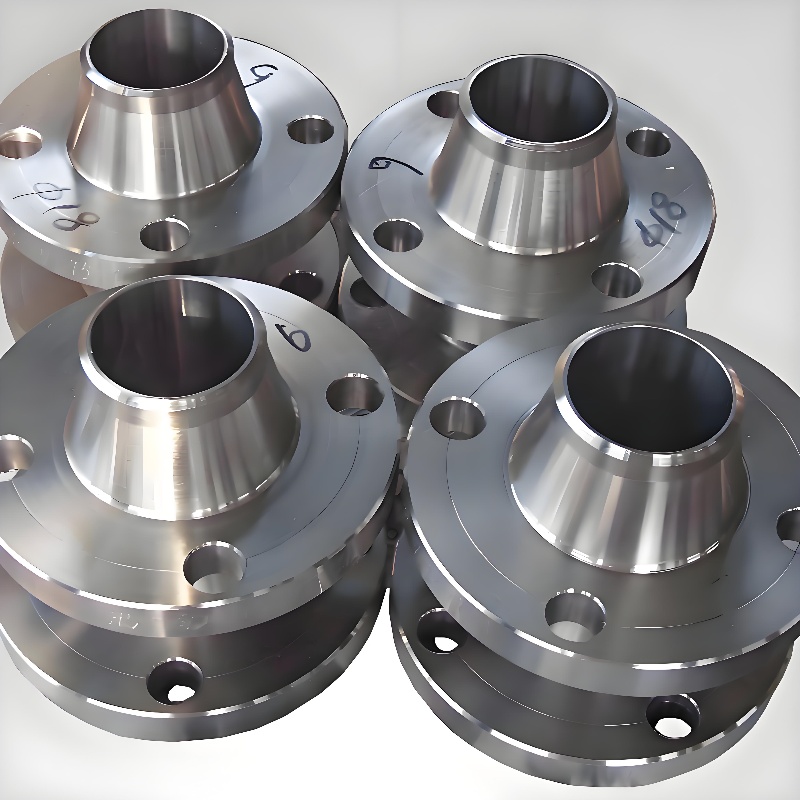

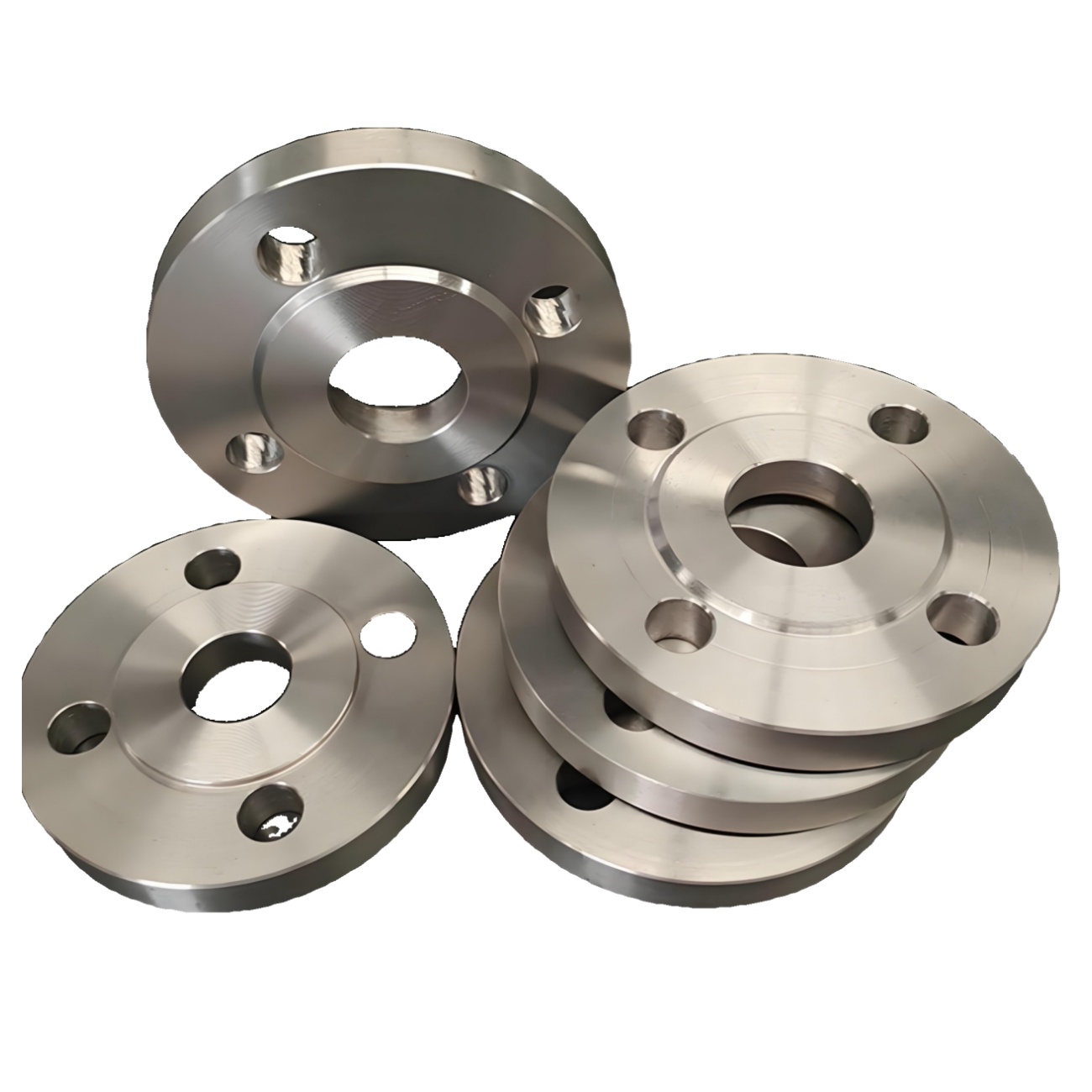

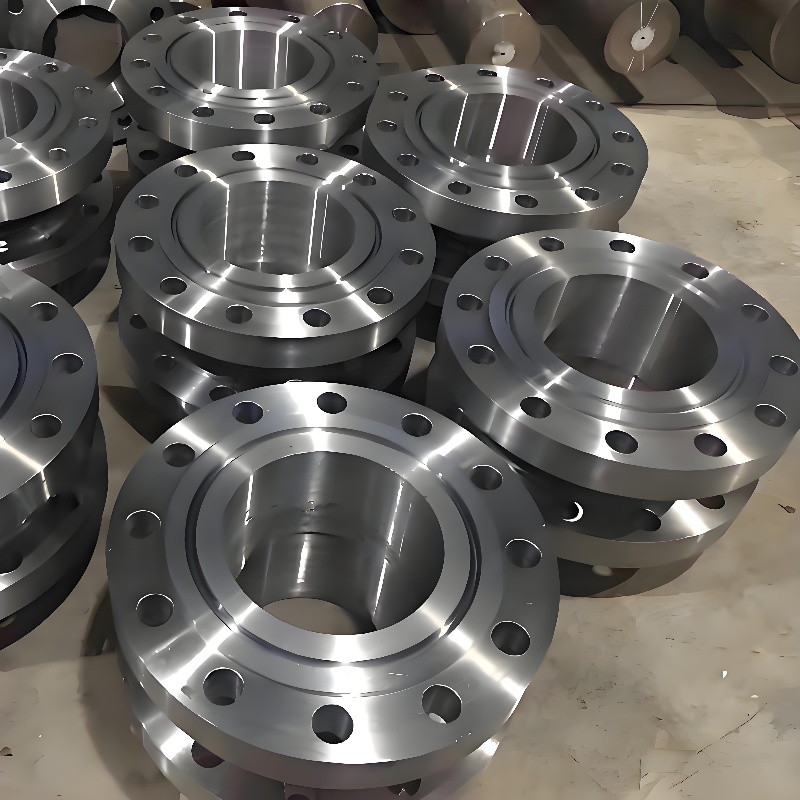

Gr2 Gr5 Gr12 Ti Alloy Flange Titanium Pipe Flanges

Wechat:18832681205

Whatsapp :+86 18832681205

Email: Daisy@foam-material.com

item no :
ZOPIN-AT04
moq :
1
lead date :
In Stock
payment:
Credit Card L/C D/A D/P T/T Western Union

contact now

product details

Gr2 Gr5 Gr12 Ti Alloy Flange Titanium Pipe Flanges

Dimensions

NPS	DN	OD（mm）	NPS	DN	OD（mm）
1/2"	15	21.3	20"	500	508
3/4"	20	26.7	22"	550	558.8
1"	25	33.4	24"	600	609.6
1-1/4"	32	42.2	26"	650	660.4
1-1/2"	40	48.3	28"	700	711.2
2"	50	60.3	30"	750	762
2-1/2"	65	73	32"	800	812.8
4"	100	114.3	34"	850	863.6
5"	125	141.3	36"	900	914.4
6"	150	168.3	38"	950	965.2
8"	200	219.1	40"	1000	1016
10"	250	273	42"	1050	1066.8
12"	300	323.8	44"	1100	1117.6
14"	350	355.6	46"	1150	1168.4
16"	400	406.4	48"	1200	1219.2
18"	450	457.2	The size can be customized

To customize various Titanium Production, please click the picture below for details：

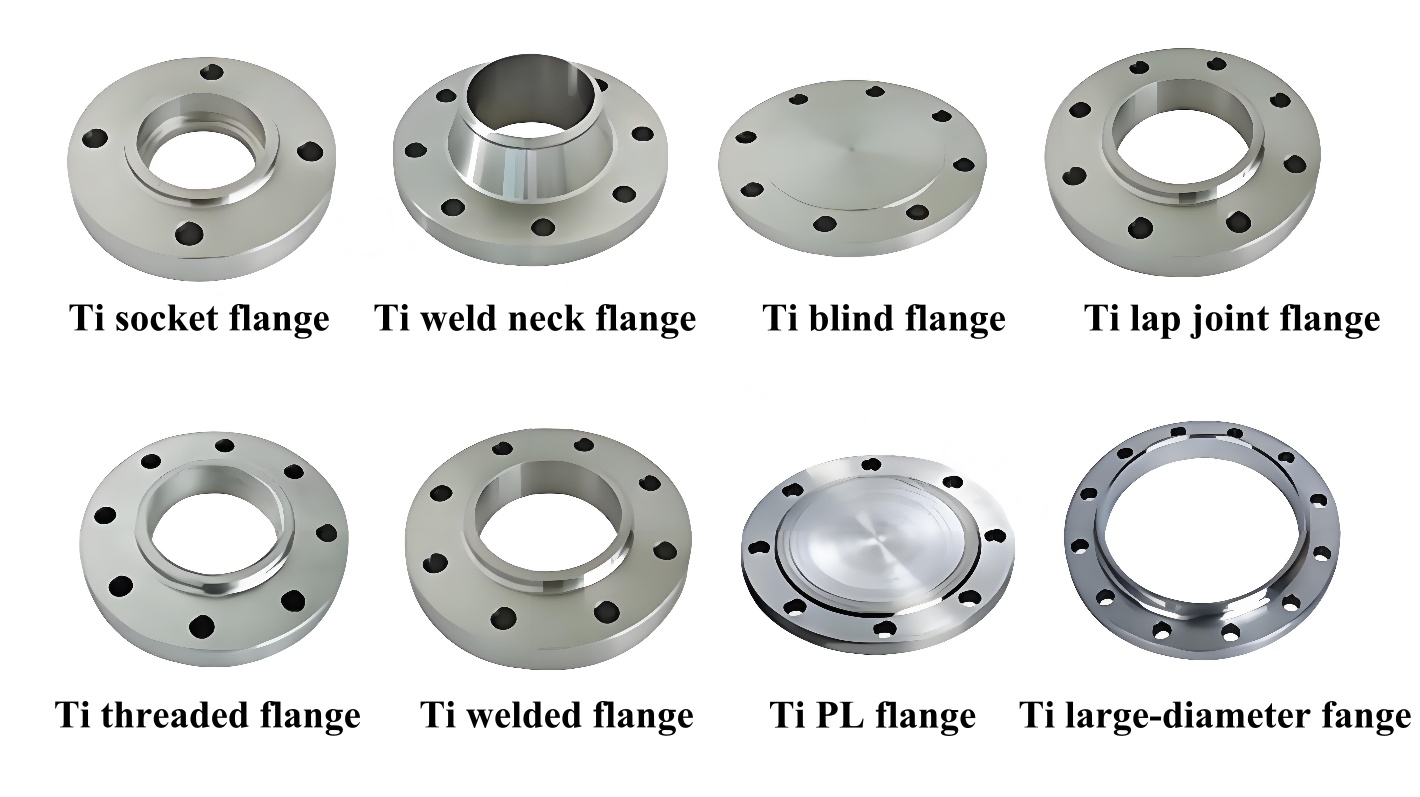

Type

Advantages

1. High specific strength. Compared with steel, titanium alloy has similar strength, but its density is only about 60% of that of steel, about 4.5g/cm3; its elastic modulus is much lower than that of steel, ranging from 1.078×105 to 1.176×105MPa. In other words, the strength of titanium alloy is similar to that of steel, but it has low dead weight and good elasticity, making it convenient for transportation, hoisting and processing. Thanks to this characteristic, parts with good rigidity and light weight can be manufactured, such as engine components, aircraft frames, landing gear, fasteners, etc.

2. High thermal strength. The melting point of titanium is 1725℃, and its thermal conductivity is 15.24W/(m·K). It can still maintain good strength at moderate temperatures. Compared with aluminum alloy, the strength decreases significantly when the ambient temperature reaches 150℃, while titanium alloy can still meet certain strength requirements in an environment of 450~500℃.

3. Strong corrosion resistance. The chemical components in titanium alloy materials react chemically with nitrogen and oxygen in the air to form a protective layer on the surface of the material, thereby improving the corrosion resistance. It has strong resistance to pitting, acid corrosion, and stress corrosion; it has good corrosion resistance to strong acids and organic substances.

Material Types
