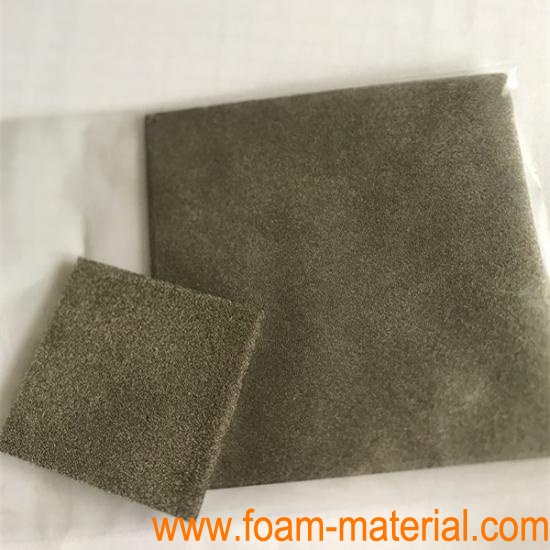

In Stock Nickel Copper Foam Metal Foam Sheet

Features

* Nickel Copper Foam has excellent thermal conductivity and can be widely used for heat conduction and heat dissipation of motors, electrical appliances and electronic components.

* Nickel Copper Foam has excellent electrical conductivity and never rusts.

* Nickel Copper Foam is an excellent medical filter material and water purification filter material due to its structural characteristics and its non-harmful properties to human body.

Specifications

Type	Open Cell
Purity	> 97%
Form	Sheet or Roll, depending on size & thickness

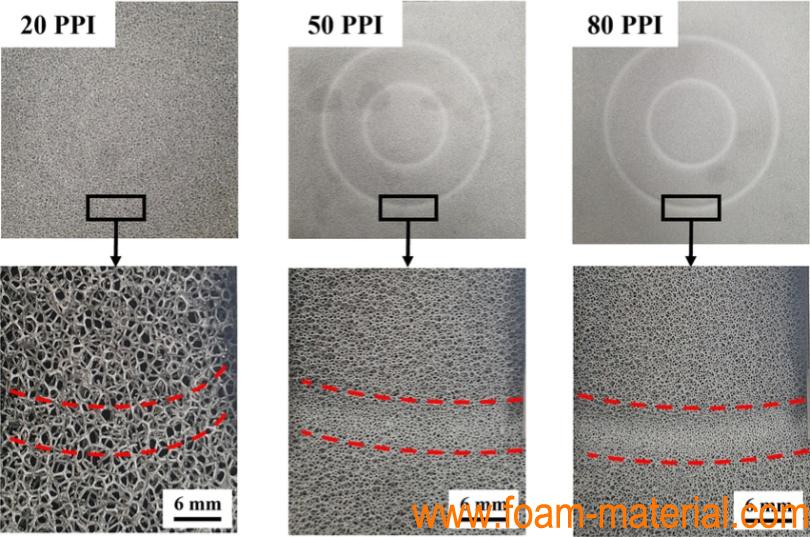

Cell Size (PPI)	5-150PPI, as per request
Thickness	Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request
Size & Shape	can be made in different shape as per request
Porosity	50%-98%
Open Cell Rate	≥98%
Volume Density	0.1-0.8g/cm3, as per request

Dimensions

0.5mm*200mm*300mm	0.7mm*200mm*300mm	0.8mm*200mm*300mm
1mm*200mm*300mm	1.5mm*200mm*300mm	1.6mm*200mm*300mm
2mm*200mm*300mm	2.5 to 3mm*200mm*300mm	The size can be customized

To customize various metal foams, please click the picture below for details：

Copper Foam	Nickel Foam	Ti Foam	Aluminum Foam
Iron Nickel Foam	Carbon Foam	Silver Foam	Cobalt Foam
