Laboratory Materials Nickel Chrome Alloy Foam Electrode Metal Foam

Features

Nickel-Chrome Alloy Foam is a low-density permeable material with features of electromagnetic shielding, excellent sound absorption and noise reduction, high filtration precision, high temperature resistance and high corrosion resistance.

1. Electromagnetic shielding

    Magnetic radiation shielding efficiency ≥ 70dB.

2. Sound absorption and noise reduction
    Sound absorption performance level I, noise reduction coefficient NRC0.8. It has excellent

    sound absorption and noise reduction.

3. Filtration performance
    The distribution of foam metal pores can effectively block solid impurities in liquids and gases,

    and has high filtration precision.

4. Fire resistance

    Keep the shape stable, it is difficult to burn at high temperature, and it is resistant to high

    temperature.

5. Corrosion resistance

    The surface layer is compounded with nickel, chromium and other metals, which have high

    resistance to salt spray corrosion.

Specifications

Type	Open cell
Purity	> 97%
Form	Sheet or Roll, depending on size & thickness

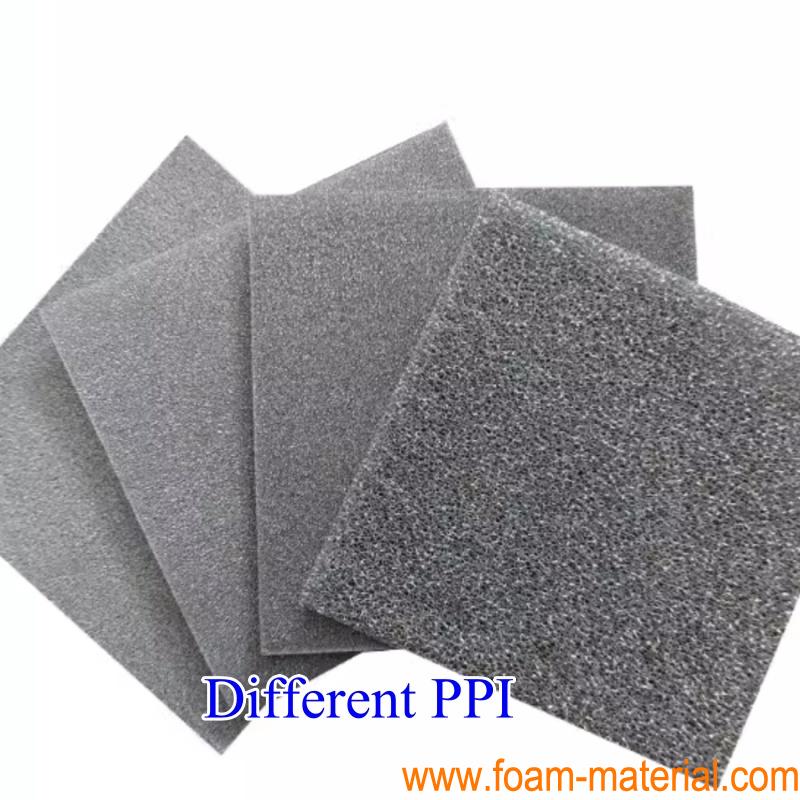

Cell Size (PPI)	5-150PPI, as per request
Thickness	Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request
Size & Shape	can be made in different shape as per request
Porosity	95%-98%
Open Cell Rate	≥98%
Volume Density	0.1-1g/cm3, as per request

Dimensions

0.5mm*200mm*300mm	0.7mm*200mm*300mm	0.8mm*200mm*300mm
1mm*200mm*300mm	1.5mm*200mm*300mm	1.6mm*200mm*300mm
2mm*200mm*300mm	2.5 to 3mm*200mm*300mm	The size can be customized
