Profiled Open Cell Foam Copper Suppliers Available To Buy

Wechat:18832681205

Whatsapp :+86 18832681205

Email: Daisy@foam-material.com

  • item no :

    ZOPIN-CF25
  • moq :

    1
  • lead date :

    In Stock
  • payment:

    Credit Card L/C D/A D/P T/T Western Union
product details

Profiled Open Cell Foam Copper Suppliers Available To Buy




Introduction

1. Because of its good conductivity,  Foam Copper can be widely used as electrode framework materials of new batteries, such as nickel zinc batteries, electric double-layer capacitors, etc. Foam copper is expected to be used as the collector of double layer electrode to promote the application of capacitors
2. Foam copper is used as collector of battery anode. Foam copper is relatively easy to manufacture and has a three-dimensional structure, which can increase the surface area of electrodes and be closer to each other, thus improving the current density. Complex three-dimensional structures are used for electrode materials rather than planes. Higher material efficiency.
3. Open Cell Copper Foam enhances the heat dissipation of the battery; Under forced convection, the porosity remains unchanged, the pore density increases, and the heat dissipation effect of the battery weakens; When the pore density is the same, the porosity decreases and the heat dissipation effect of the battery is enhanced; Under natural convection, with the same porosity, the increase in pore density enhances the heat dissipation effect of the battery.


Specifications

Type

Open cell

Purity

> 99%

Form

Sheet or Roll, depending on size & thickness

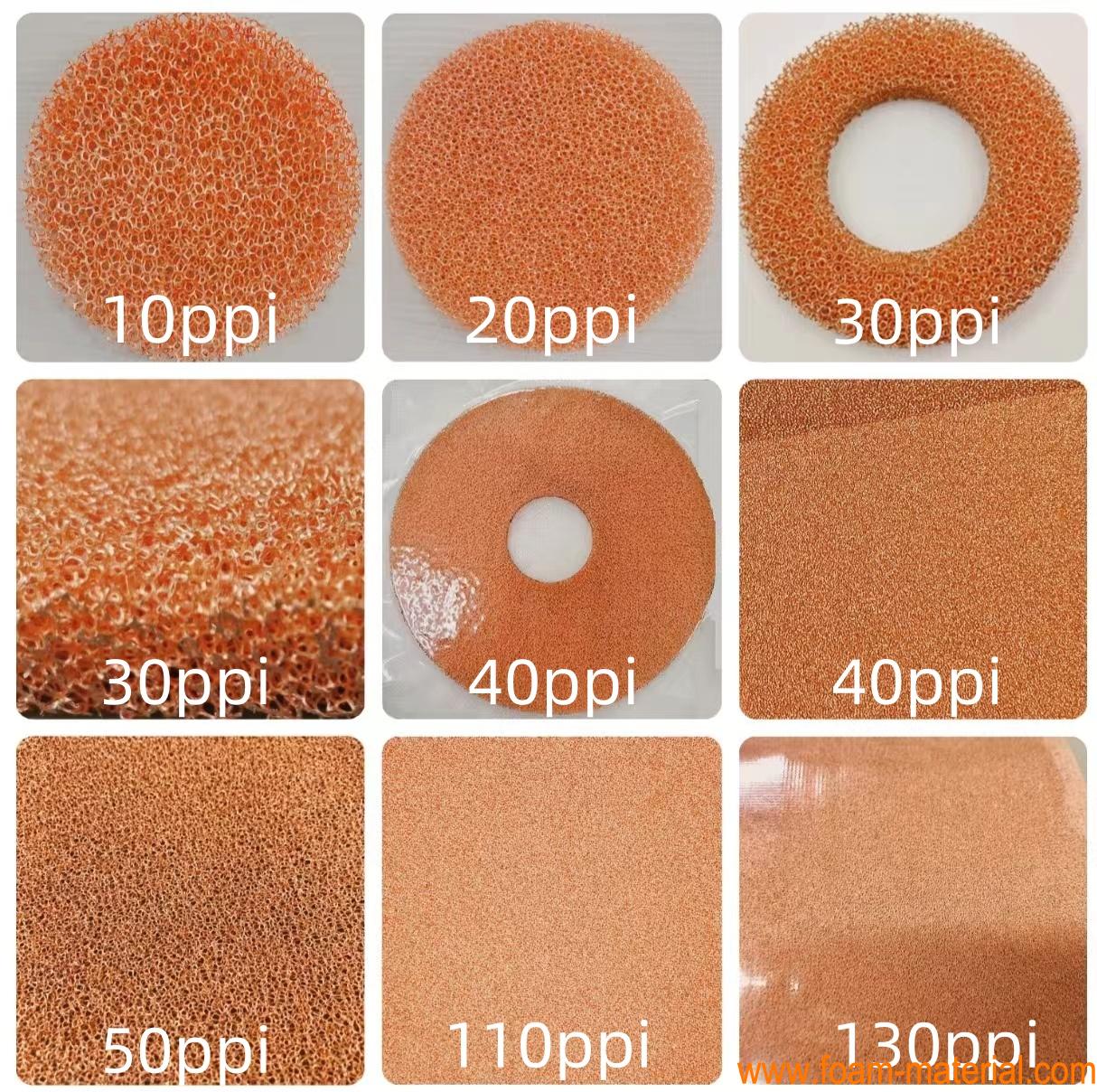

Cell Size (PPI)

10-150PPI, as per request

Thickness

0.08~25mm

Size & Shape

Standard: 500*500mm/ 200*300mm/100*100mm; can be made in different shape as per request

Porosity

95%-98%

Open Cell Rate

≥98 %

Volume Density

>0.1g/cm3, as per request

Surface Density

200-2500 g/m ^2, as per request

Thermal Conductivity (Theoretical)

>6W/M.K

Mechanical Strength (Theoretical)

≥2.5MPa

Tensile Strength (Theoretical)

5-18MPa



Dimension (Thickness* Length*Width)

0.08mm*200mm*300mm

0.1mm*200mm*300mm

0.3mm*200mm*300mm

0.5mm*200mm*300mm

1.0mm*200mm*300mm

2.0mm*200mm*300mm

3.0mm*200mm*300mm

5.0mm*200mm*300mm

6.0mm*200mm*300mm

8.0mm*200mm*300mm

10mm*200mm*300mm

20mm*200mm*300mm

23mm*200mm*300mm

25mm*200mm*300mm

The size can be customized
