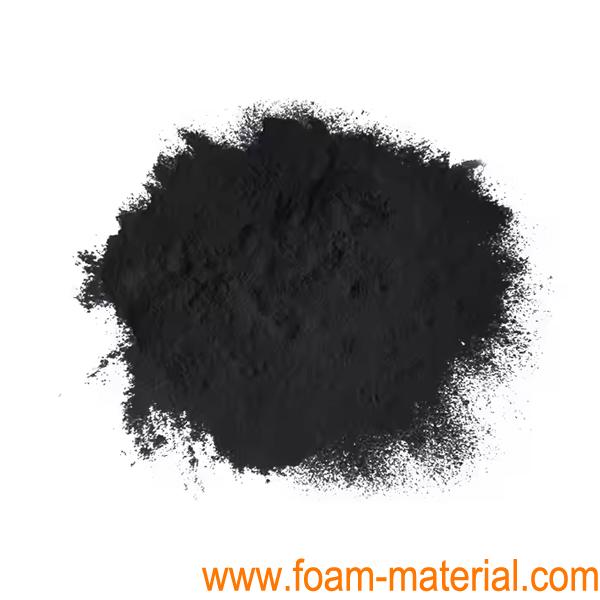

SUPER C65 Carbon Black Powder for Lithium Ion Battery Electrodes

Overview:
The C65 is a high performance conductive carbon black powder. SUPER C65 is an ultra-high purity product that has been used as a conductive additive in lithium ion battery electrodes (cathode and anode) to improve the battery performance.

Advantages:
a. The lowest Fe impurity level (1 ppm)
b. High specific surface area (62 m2/g)
c. Superior battery performance
The primary purpose of use of these SUPER C65 carbon black is to provide electrical conductivity to lithium-ion battery electrodes at low to very low loading.

Application Benefits:
Increased battery safety
Lower rejection ratio
Fully compatible with most electrolyte systems
No additional pre-dispersing is needed
No dispersing aid is needed
Very high loading is possible
Cost savings on NMP and faster drying time
High energy density
Improved power density
Cost reduction thanks to lower dosage needed
Improved flexibility of the electrode

Technical Properties:

Volatile Content	0.15 % max
Toluene Extract	0.1% max
Ash content (600°C)	0.025% max
Grit content > 45 microns / 325 mesh	<2 ppm
Grit content > 20 microns / 625 mesh	<10 ppm
BET specific surface area (SSA)	62 m2/g
Primary Particle Size (based on TEM)	less than 50 nm
Adsorption stiffness value	32 ml/5g
Moisture	0.1%
Density	1.60 g/cm3
Sulfur Content	0.02%
pH	10
Iron (Fe)	1 ppm
Nickel (Ni)	<1 ppm
Cobalt (Co)	< 1 ppm
Vanadium (V)	< 1 ppm
Chromium (Cr)	< 1 ppm
Copper (Cu)	< 1 ppm
Package	Packaged in an air-tight container sealed in an aluminum vacuum bag

Note: Please bake the SUPER C65 carbon black powder in an oven at 150 ~ 200°C to remove absorbed moisture before using it to make slurry for coating.
