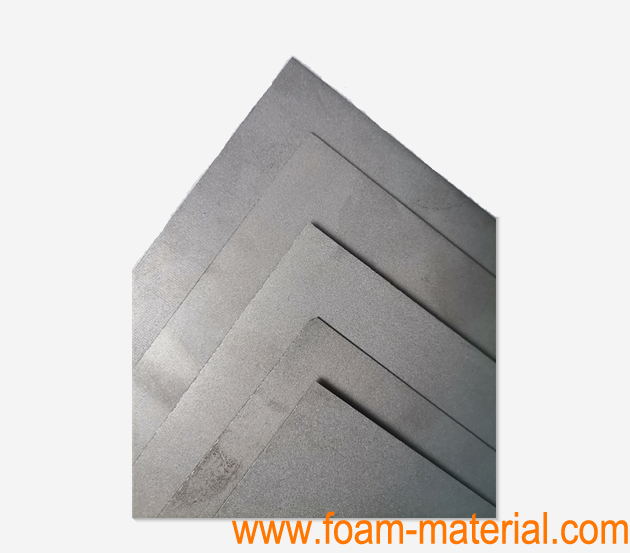

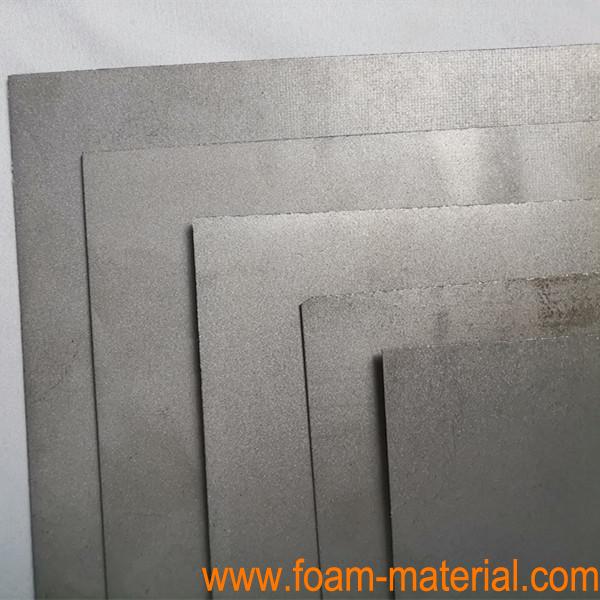

Filtering Accuracy 5um-80um (SS) Metal Foam Stainless Steel Foam




Introduction

Stainless steel foam containing the foamed pores has a higher porosity and a larger pore size of up to 10 mm than the generally sintered porous metal. Since the metal foam is a two-phase composite composed of a continuous phase of a metal matrix skeleton and a dispersed phase of a pore or a continuous phase, its properties depend on the metal matrix used, the porosity and the pore structure, and are affected by the preparation process.


Specifications

Diameter

Ф5-Ф300 (mm)

Thickness

0.5-10mm

Filtration accuracy

0.5un-70um

Material

302 304 304L 321 316 316L 310S

Porosity

20-50％

Permeability

3-1300m3/m3hkPa

Compressive strength

3Mpa

Temperature resistance

500℃

Maximum working pressure

0.6Mpa

Shape

Rectangle, Circular, Tube, Cylinder

z

Dimension (Thickness* Length*Width)

0.7mm*200mm*300mm

0.8mm*200mm*300mm

1.0mm*200mm*300mm

1.5mm*200mm*300mm

1.6mm*200mm*300mm

2.0mm*200mm*300mm

2.5mm*200mm*300mm

3.0mm*200mm*300mm

The size can be customized
