High Purity (SS) Stainless Steel Foam Electrode Sheet

Wechat:18832681205

Whatsapp :+86 18832681205

Email: Daisy@foam-material.com

item no :
ZOPIN-SS-FOAM
moq :
1
lead date :
In Stock
payment:
Credit Card L/C D/A D/P T/T Western Union

contact now

product details

High Purity (SS) Stainless Steel Foam Electrode Sheet

Introduction

Stainless steel foam containing the foamed pores has a higher porosity and a larger pore size of up to 10 mm than the generally sintered porous metal. Since the metal foam is a two-phase composite composed of a continuous phase of a metal matrix skeleton and a dispersed phase of a pore or a continuous phase, its properties depend on the metal matrix used, the porosity and the pore structure, and are affected by the preparation process.

Specifications

Diameter	Ф5-Ф300 (mm)
Thickness	0.5-10mm
Filtration accuracy	0.5un-70um
Material	302 304 304L 321 316 316L 310S
Porosity	20-50％
Permeability	3-1300m3/m3hkPa
Compressive strength	3Mpa
Temperature resistance	500℃
Maximum working pressure	0.6Mpa
Shape	Rectangle, Circular, Tube, Cylinder

Dimension (Thickness* Length*Width)

0.7mm200mm300mm	0.8mm200mm300mm	1.0mm200mm300mm
1.5mm200mm300mm	1.6mm200mm300mm	2.0mm200mm300mm
2.5mm200mm300mm	3.0mm200mm300mm	The size can be customized

To customize various metal foams, please click the picture below for details：

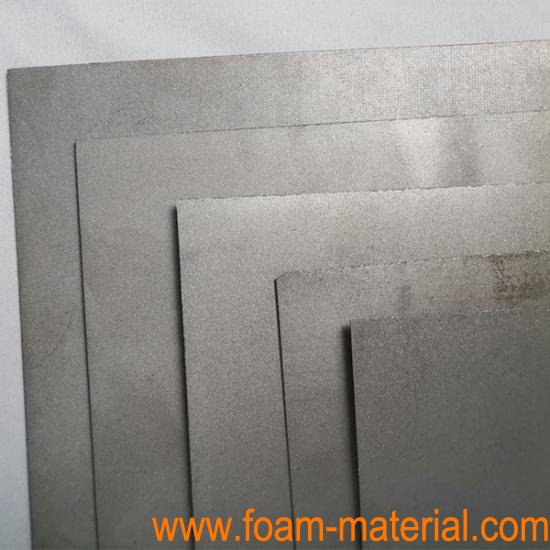

Stainless steel foam

SS FOAM

ss metal foam

0.7mm200mm300mm	0.8mm200mm300mm	1.0mm200mm300mm
1.5mm200mm300mm	1.6mm200mm300mm	2.0mm200mm300mm
2.5mm200mm300mm	3.0mm200mm300mm	The size can be customized
