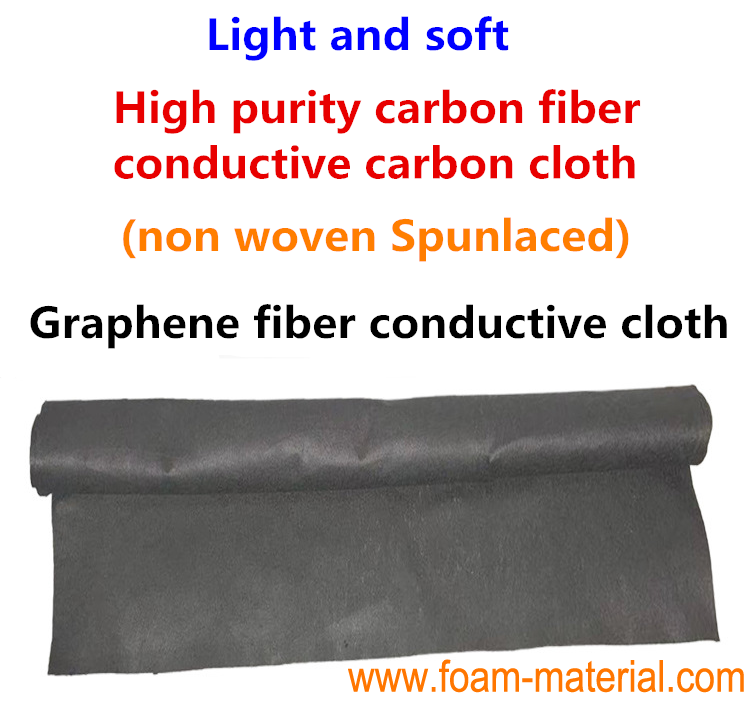

High Purity Carbon Fiber Conductive Carbon Cloth Spunlaced Non-Woven Carbon Cloth

High Purity Carbon Fiber Conductive Carbon Cloth Spunlaced Non-Woven Carbon Cloth

Technical indicators:

Test items		Test standard	unit	Specifications
width of cloth		ISO3932-1976	cm	30-100
Fiber fineness		GB/T18147.4-2015	Dtex	1-1.8
thickness		ISO5084-1996	mm	0.02-0.8
Specific surface area		GB/T19587-2004	M2/g	100-300
Limiting oxygen index		GBT5454-1997	%	55-65

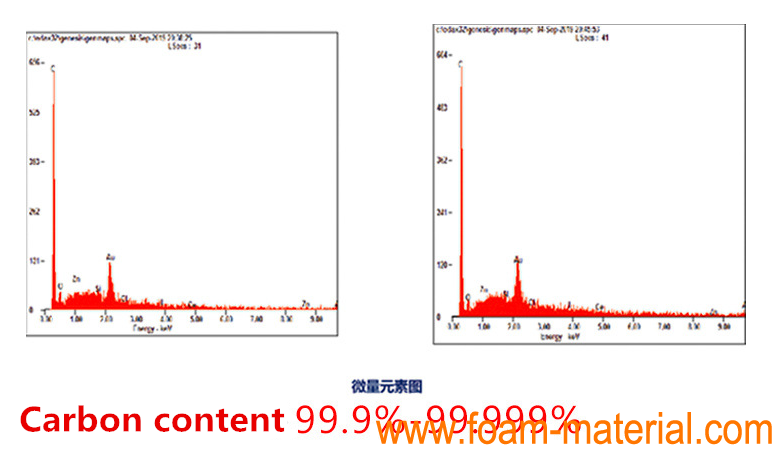

Carbon content		GB/T31292-2014	%	99.9-99.999

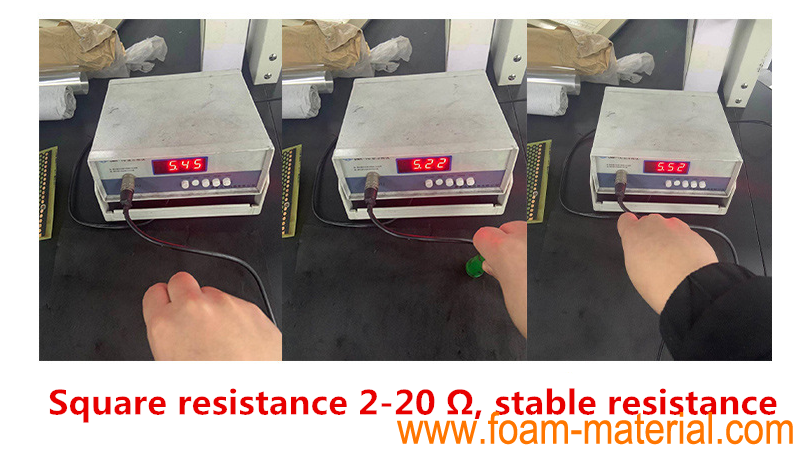

Square resistance		GB/T1552-1995	Ω	2-20
Far infrared emissivity		GB/T30127-2013	%	80-90
Negative ion generation		GB/T30128-2013	An/cm3	500-10000
Thermal conductivity	Plane	DB23/T1905-2017	W/M-K	300-1500
	vertical			20-60
Antibacterial rate		GBT20944.1-2007	%	>99.99%
Stable service temperature		GB/T13767-1992	°C	-60-2000

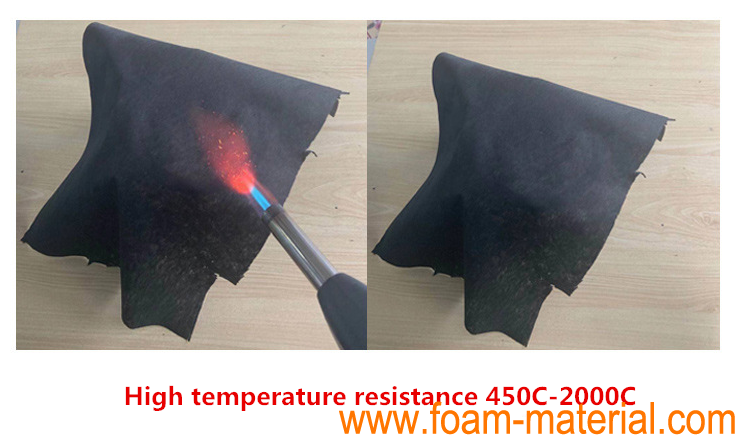

High temperature resistance （in air）		GBT1552-1995	°C	450-2000
